| Description: |

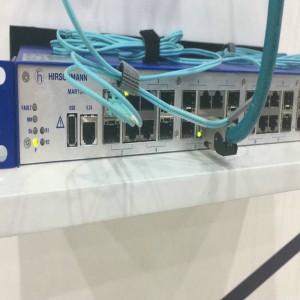

24 port Gigabit Ethernet Industrial Workgroup switch (20 x GE TX Ports, 4 x GE SFP combo ports), managed, software Layer 2 Professional, Store-and-Forward-Switching, IPv6 Ready, fanless design |
| Port type and quantity: |
24 ports in total; 20 x (10/100/1000 BASE-TX, RJ45) and 4 Gigabit Combo ports (10/100/1000 BASE-TX, RJ45 or 100/1000 BASE-FX, SFP) |
| Life Cycle: |
Limited Availability/Passive - the product is entering End of Life |
| Last Order Date: |
2023-12-31 |
| Last Delivery Date: |
2024-06-30 |
| Power supply/signaling contact: |
1 x plug-in terminal block, 2-pin, output manual or automatic switchable (max. 1 A, 24 V DC bzw. 24 V AC) |
| V.24 interface: |
1 x RJ11 socket, serial interface for device configuration |
| USB interface: |
1 x USB to connect auto-configuration adapter ACA21-USB |
| Twisted pair (TP): |
0-100 m |
| Single mode fiber (SM) 9/125 µm: |
see SFP module M-FAST SFP-MM/LC and SFP module M-SFP-SX/LC |
| Single mode fiber (LH) 9/125 µm (long haul transceiver): |
see SFP FO module M-FAST SFP-SM+/LC |
| Multimode fiber (MM) 50/125 µm: |
see SFP module M-FAST SFP-MM/LC and SFP module M-SFP-SX/LC |
| Multimode fiber (MM) 62.5/125 µm: |
see SFP module M-FAST SFP-MM/LC and SFP module M-SFP-SX/LC |
| Line - / star topology: |
any |
| Ring structure (HIPER-Ring) quantity switches: |
50 (reconfiguration time 0.3 sec.) |
| Operating Voltage: |
100-240 V AC, 50-60 Hz |
| Power output in BTU (IT)/h: |
119 |
| Redundancy functions: |
HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP gleichzeitig, Link Aggregation |
| Switching: |
Disable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), Jumbo Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Double VLAN Tagging (QinQ), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier (v1/v2/v3) |
| Redundancy: |
Advanced Ring Configuration for MRP, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Fast HIPER-Ring, Link Aggregation with LACP, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards, RSTP over MRP |
| Management: |
Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet |
| Diagnostics: |
Management Address Conflict Detection, Signal Contact, Device Status Indication, LEDs, Syslog, Port Monitoring with Auto-Disable, Link Flap Detection, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog |
| Configuration: |
AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help |
| Security: |
IP-based Port Security, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, RADIUS VLAN Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Access to Management restricted by VLAN, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, SNMP Logging, Local User Management, Remote Authentication via RADIUS |
| Time synchronisation: |
PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, Buffered Real Time Clock, SNTP Client, SNTP Server |
| Industrial Profiles: |
EtherNet/IP Protocol, PROFINET IO Protocol |
| Miscellaneous: |
Manual Cable Crossing |
| Operating temperature: |
0-+50 °C |
| Relative humidity (non-condensing): |
10-95 % |
| Dimensions (WxHxD): |
448 mm x 44 mm x 345 mm |
| Mounting: |
19" control cabinet |
| IEC 60068-2-6 vibration: |
3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min |
| IEC 60068-2-27 shock: |
15 g, 11 ms duration, 18 shocks |
| EN 61000-4-2 electrostatic discharge (ESD): |
4 kV contact discharge, 8 kV air discharge |
| EN 61000-4-3 electromagnetic field: |
10 V/m (80-3000 MHz) |
| EN 61000-4-4 fast transients (burst): |
2 kV power line, 4 kV data line |
| EN 61000-4-5 surge voltage: |
power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line |
| EN 61000-4-6 Conducted Immunity: |
10 V (150 kHz-80 MHz) |
| EN 55022: |
EN 55022 Class A |
| FCC CFR47 Part 15: |
FCC 47CFR Part 15, Class A |
| Safety of industrial control equipment: |
cUL 508 |
| Safety of information technology equipment: |
cUL 60950-1 |
| Guarantee: |
60 months (please refer to the terms of guarantee for detailed information) |
| Accessories to Order Separately: |
Fast Ethernet SFP modules, Gigabit Ethernet SFP modules, autoConfiguration Adapter ACA21-USB, terminal cable, Industrial Hivision Network Management software |
| Scope of delivery: |
MACH100 device, terminal block for signal contact, 2 brackets with fasteningscrews (pre-assembled), housing feet - stick-on, non-heating appliance cable - Euro model |
| updat and Revision: |
Revision Number: 0.168 Revision Date: 06-18-2024 |
| Item # |
Type |
| 942003001 |
MACH104-20TX-F |
