德國REIKU機器人管線包組合內夾（Combi Middle Jaws）
REIKU Middle Jaws / REIKU Combi Middle Jaws
REIKU代理商：上海頤品自動化科技有限公司
關鍵詞：REIKU尼龍軟管，REIKU機器人尼龍軟管，德國REIKU-PA12尼龍軟管
REIKU尼龍軟管接頭，REIKU尼龍軟管固定座，REIKU防撞塊，REIKU星型分線頭
REIKU尼龍軟管，REIKU編織網(wǎng)管，REIKU機器人軟管，REIKU管夾支架，
REIKU防撞塊，REIKU尼龍軟管接頭，REIKU尼龍固定座，REIKU尼龍軟管
REIKU法蘭盤，REIKU分線頭，REIKU中間內夾，REIKU直通接頭和內夾
The Gripping Clamp’s function is dictated by the type of Jaw Set that is inserted into the Clamp. The Gripping Clamp can hold the conduit in place allowing no lateral movement or the gripping clamp can be used as a “halo” and the conduit can move laterally. All of the Jaw Sets rotate radially 360° inside the Gripping Clamp.
Description：

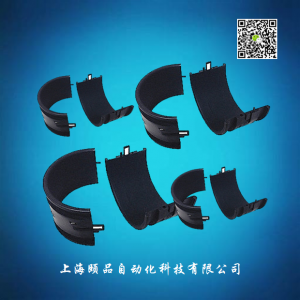

Combi Middle Jaws have four ridges that lock into the corrugations of the conduit and prevent the conduit from moving laterally through the Gripping Clamp assembly. The Combi Middle Jaws are wider than the Middle Jaw and are used to “splice” two lengths of conduit together or to attach Cabletar grommets to the conduit at termination points. The conduit and the Cablestar would each occupy 50% of the Combi Middle Jaw with two ridges of the Combi Jaw locking into two grooves of the conduit and the remaining two ridges locking into two grooves in the Cablestar grommet.
* All of the REIKU Jaw sets (except Comb Jaws) rotate in an orbital/radial direction inside the Gripping Clamp in order to prevent/ remove torsion load.
| Part No. |
REIKU組合型中間內夾 |
Quantity |
| PAKMB-17 F/G |
Middle/Combi Jaw Middle Jaw |
25 |
| PAKMB-36/36 |
Middle Jaw |
10 |
| PAKMB-68 |
Middle/Combi-Jaw |
10 |
| PAKMB-70 |
Middle/Combi-Jaw |
10 |
| PAKMB-90 |
Middle/Combi-Jaw |
10 |
