TESCOM 74-3000系列 減壓調壓閥-艾默生EMERSON

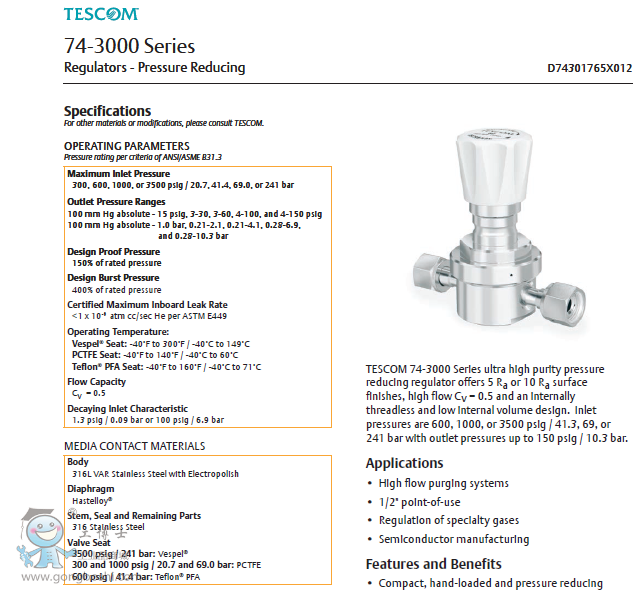

TESCOM 74-3000 Series ultra high purity pressure reducing regulator offers 5 Ra or 10 Ra surface finishes, high flow Cv = 0.5 and an internally threadless and low internal volume design. Inlet pressures are 600, 1000, or 3500 psig / 41.3, 69, or
241 bar with outlet pressures up to 150 psig / 10.3 bar.
Applications
• High flow purging systems
• 1/2" point-of-use
• Regulation of specialty gases
• Semiconductor manufacturing
Features and Benefits
• Compact, hand-loaded and pressure reducing
• Low internal volume
• Smooth unobstructed flow path for complete purging
• Internally threadless
• Absolute pressure range model is available
• Excellent leak integrity is created by metal-tometal diaphragm to body seal
