TESCOM 26-1600系列 減壓調節(jié)閥

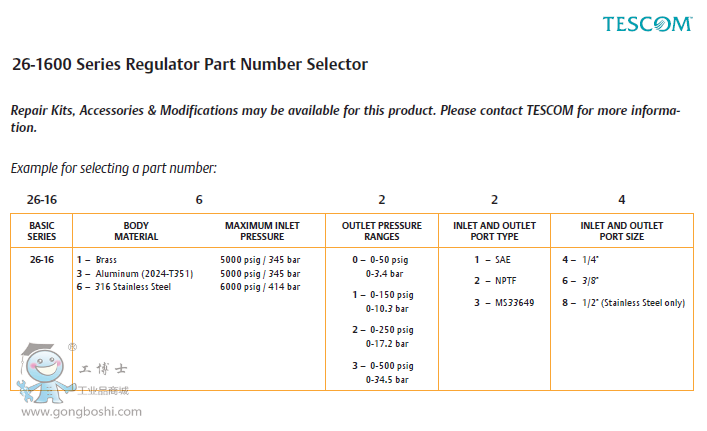

26-166224, 26-161224, 26-163224, 26-166024, 26-166124

26-166324, 26-166214, 26-161214, 26-163214, 26-166014

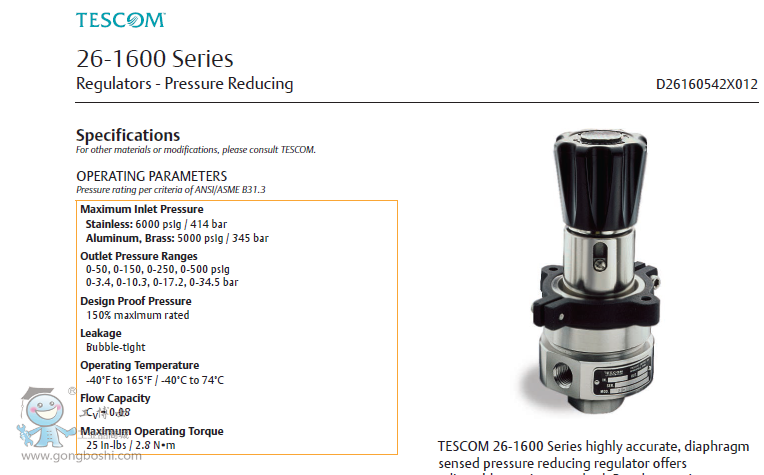

TESCOM 26-1600 Series highly accurate, diaphragm sensed pressure reducing regulator offers adjustable venting standard. Panel mounting, integrated 40 micron filter and low handknob torque ensure a robust and adaptable design with many modifications available.

Applications
• Test equipment
• Calibration stands
• Production equipment

Features and Benefits
• Venting is standard (available with captured venting)
• Highly sensitive
• Features a non-rising stem and low operating torque
• Compact design
• Filter extends seat life
• Numerous porting options
• Panel mounting (bracket included)
• Easy maintenance with standard tools
• High flow Cv = 0.24 version is available (maximum inlet pressure: 3000 psig / 207 bar)
